Pushing Data Through FM Voice Radios: Real-World Findings from the DART Modem

Background

DART (Data Adaptive Rate Transport) is an experimental modem built into HTCommander for moving data over ordinary 2 m / 70 cm FM voice radios. It is an adaptive OFDM waveform (DFT-spread / SC-FDMA) that packs 9 subcarriers into the ~500–2500 Hz audio passband, protected by LDPC forward error correction. It offers a ladder of speeds so it can trade throughput for robustness depending on the link:

Level F is a special constant-envelope 4-FSK fallback for amplitude-hostile radios — it sacrifices speed for immunity to the amplitude distortion that FM audio paths often introduce.

The question we set out to answer: on a real radio link, which of these actually work, and what limits the rest?

Test setup

Everyone should be able to picture (and rebuild) our bench, so here it is in full:

• Two UV-Pro handheld radios, one transmitting and one receiving.
• Bluetooth audio on both ends. The data never touches a cable — the app streams PCM to the transmit radio over Bluetooth (SBC codec), and the receive radio streams audio back to the app over Bluetooth (SBC codec) as well. So every frame passes through the lossy SBC codec twice, once on each hop.
• The two radios sat about 50 feet (15 m) apart indoors — a strong, short-range signal with no fading to speak of.
• 32 kHz / 16-bit / mono audio throughout.

We transmitted a fixed test message at each DART level, captured the received audio to a WAV file, and ran the decoder with a constellation-diagram export so we could see the signal quality, not just pass/fail.

Constellation diagrams below: blue dots are the ideal constellation points the transmitter aimed for; red dots are what actually came out of the radio link after equalization. Tight red clusters on the blue points = a clean link. A smeared cloud = trouble.

Results: the rate ladder over the air

Here is the full scorecard from the 50-foot UV-Pro link:

* A note on EVM/SNR: these are measured to the nearest constellation point, so they are not directly comparable across modulation orders — a noisy 16QAM symbol always has a nearby (wrong) point, making its EVM look artificially better than QPSK's. The CRC column is the real verdict.

What worked: BPSK (Level 0), QPSK R1/2 (Level 1), and the 4-FSK fallback (Level F) all decoded cleanly. What failed: everything faster than Level 1 — QPSK R2/3, 8PSK, and both 16QAM modes.

This is textbook graceful degradation: the robust modes deliver, the aggressive modes don't, and the preamble was detected in every single case (correlation ~0.80, well above our 0.6 threshold). An adaptive link would simply settle at Level 1.

The constellations tell the story

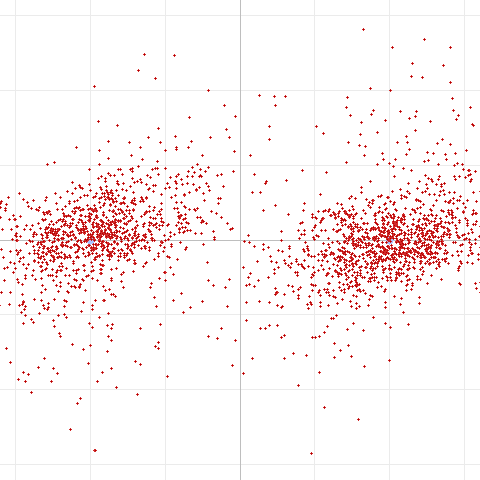

Level 0 — BPSK (decoded ✅)

Two heavily-smeared clusters, but they stay cleanly separated left/right of the axis. BPSK only cares about sign, so even a very noisy link recovers the bits.

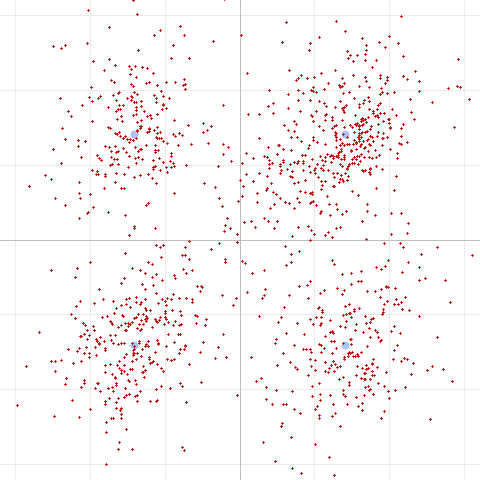

Level 1 — QPSK (decoded ✅)

Four clusters, one per quadrant. Spread and overlapping toward the center, but the rate-1/2 FEC has enough margin to clean up the residual errors. This is the fastest mode that reliably worked.

Level 3 — 8PSK (failed ❌)

Eight phase points need 45° of resolution. Instead we get a smeared ring that never resolves into eight clusters — the phase precision simply isn't there.

Level 4 — 16QAM (failed ❌)

16QAM needs precise amplitude and phase. The received symbols land nowhere near the 4×4 grid of ideal points — a diffuse cloud that the decoder can't resolve.

Chasing the ceiling: what doesn't fix it

The obvious next question was why the higher modes fail, and whether we could tune our way out of it. We ran a systematic sweep of radio settings, always on Level 3 (8PSK) as our sensitive canary. Every metric stayed pinned at roughly 34% EVM / 9 dB SNR no matter what we changed:

That last row is worth dwelling on: moving the radios created a deep, frequency-selective null in the passband — classic multipath — and DART's OFDM structure simply equalized it away on a per-subcarrier basis. This is exactly what multi-carrier modems are supposed to do, and it held up beautifully in the real world.

So: not level, not band, not RF frequency, not multipath. The ceiling is fixed somewhere in the audio/baseband chain common to every configuration — which points squarely at the Bluetooth SBC codec and the radio's audio processing.

The control experiment: proving it's phase noise, not additive noise

To confirm the culprit, we built an end-to-end simulation of the same chain in software: encode a DART-5 (the hardest 16QAM mode) frame, push it through the SBC codec, add channel noise, then decode. If SBC + noise were the problem, 16QAM should fail here too.

It didn't. Not even close:

Level 5 — 16QAM through simulated SBC + 25 dB noise (decoded ✅, 0 corrections)

Sixteen tight, perfectly-resolved clusters on the ideal grid. EVM 2.9% versus ~29% over the air. We even doubled the noise (down to 22 dB SNR) and it still decoded flawlessly with zero LDPC corrections.

The conclusion is unavoidable: neither the SBC codec nor additive noise is what kills the high-order modes. 16QAM survives both easily in isolation. The real over-the-air failure is specifically phase noise / distortion introduced by the FM radio audio path — something additive-noise simulation doesn't capture.

A fun aside: why one corner gets crowded

Sharp-eyed readers will notice the bottom-left of that simulated constellation is denser than the rest:

That is not a channel effect — it's the zero-padding of a short message. DART's LDPC block for Level 5 holds 540 information bits; our 15-byte test message only filled ~150 of them, leaving ~72% zero-padding. Because the code is systematic, those zeros map straight onto the single 16QAM point whose bits are 0000 (the bottom-left corner). Send a longer, 102-byte message (above) and the padding drops to ~21% — all sixteen points fill in evenly. A neat reminder that a constellation plot shows you your data statistics, not just your channel.

So what's the realistic best encoding?

Out of everything we tried on this real UV-Pro-to-UV-Pro Bluetooth link at 50 feet:

QPSK at rate 1/2 (Level 1, ~2 kbps) is the sweet spot — the fastest mode that decoded reliably. BPSK (Level 0) is the robust step below it, and 4-FSK (Level F) is the guaranteed-delivery fallback when the audio path turns hostile.

Everything above Level 1 sits just above this link's phase-noise ceiling. That lines up neatly with decades of amateur-radio experience: ~2400 bps has long been the practical ceiling for phase-shift keying through an FM voice channel, and our measurements land right on it — with DART adding modern LDPC coding, multipath-robust OFDM, and automatic rate adaptation on top.

The one thing that would raise the ceiling is not a modulation trick — it's cleaning up the audio path: a wired audio connection or a higher-quality Bluetooth codec instead of SBC. That is the experiment we most want to try next.

Reproduce this — we want your data

These are results from one link, in one room, with one pair of radios. We would love for others to confirm, contradict, or extend them. If you have a pair of Bluetooth-audio HTs (UV-Pro or otherwise), here is how to reproduce our tests with the DART test tool in HTCommander:

Transmit / capture each level over the air, then decode a captured WAV and export its constellation:

dart run test/dart_modem_test.dart decode DART-3.wav --constellation --png DART-3.png

Inspect the audio itself (levels, band energy, preamble health):

dart run test/dart_modem_test.dart analyze DART-3.wav

Run the full software channel simulation (encode → SBC → noise → decode → PNG) to compare against your over-the-air captures:

dart run test/dart_modem_test.dart pipeline -m 5 --sbc --noise 25 -o sim.wav --png sim.png "The quick brown fox jumps over the lazy dog"

Things we would especially love to see from the community:

1. Does QPSK R1/2 hold as the reliable ceiling on your radios? Or do cleaner audio paths let 8PSK / 16QAM through?
2. Wired audio vs. Bluetooth SBC — does removing SBC lift the phase-noise ceiling as we predict?
3. Different radios / SBC implementations — is the ceiling radio-specific?
4. Longer range and genuine fading — does the OFDM equalizer keep winning against multipath outdoors?

Share your constellation PNGs and decode logs. The more links we characterize, the better we can tune DART's rate ladder and defaults for real-world use.

Test setup: 2× UV-Pro, Bluetooth audio (SBC) on transmit and receive, ~50 ft apart, 2 m and 70 cm, FM. Modem: DART adaptive OFDM (SC-FDMA) + LDPC in HTCommander. All constellation diagrams generated by the DART test tool from real captured audio, except the two simulated 16QAM plots as noted.
